Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: M-shine
  • Model Number: P6.25
  • Usage: Indoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 6.25mm
  • Screen Dimension: Customized
  • Certificate: CE ROHS FCC
  • Brightness: 1500nits
  • Warranty: 2 Years
  • LED chip: Epistar
  • Module size: 250mm*250mm
  • Life span: 100000hours
  • HS code: 8528591090

Packaging & Delivery

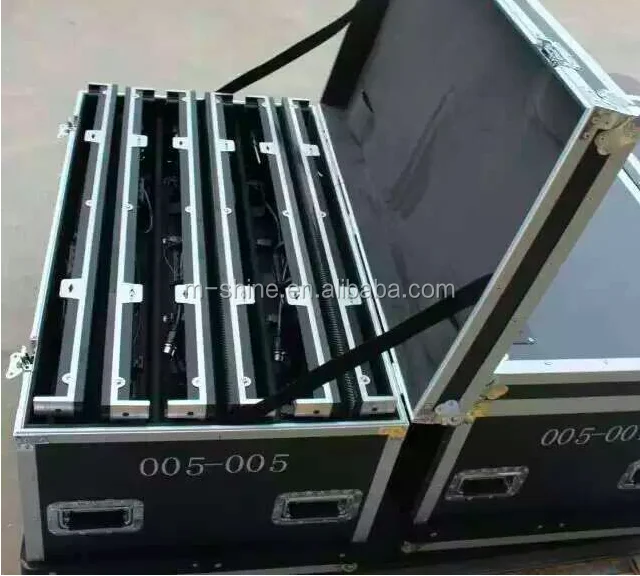

Packaging Details Flight case
Delivery Time 15~20 working days
Product Description:

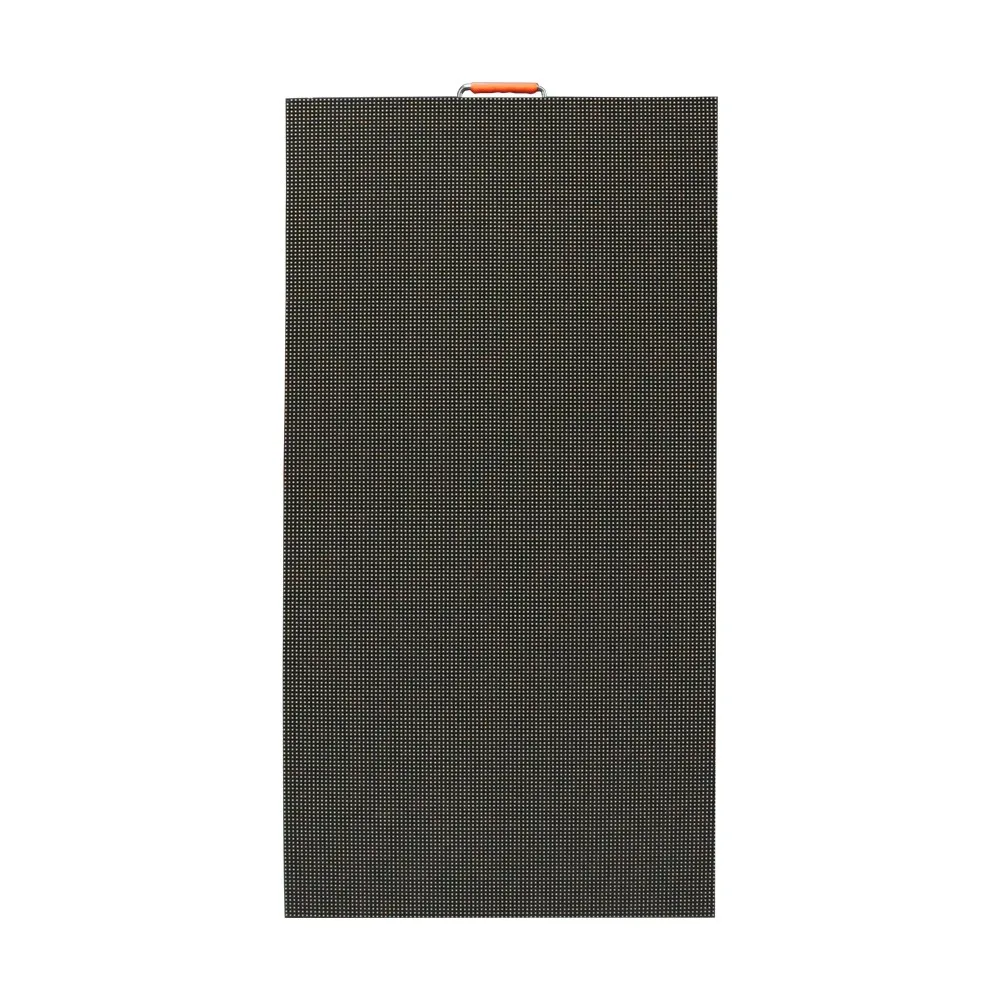

Competitive P6.25 SMD3535 Full Color LED Sign for indoor display, to be fixed or be hung on truss for advertising, with 500x1000mm or 500x500mm die-casting Aluminum cabinet, light weight, high brightness,good stability


Product Features:

1.SMD2525 3 in 1 led encapsulation confirm wide view angle up to 140° for vertical and horizontal,and lower power consumption,energy saving

2. Good waterproof IP65, suit to any weather,anti-corrossion,long life span over 50000Hours

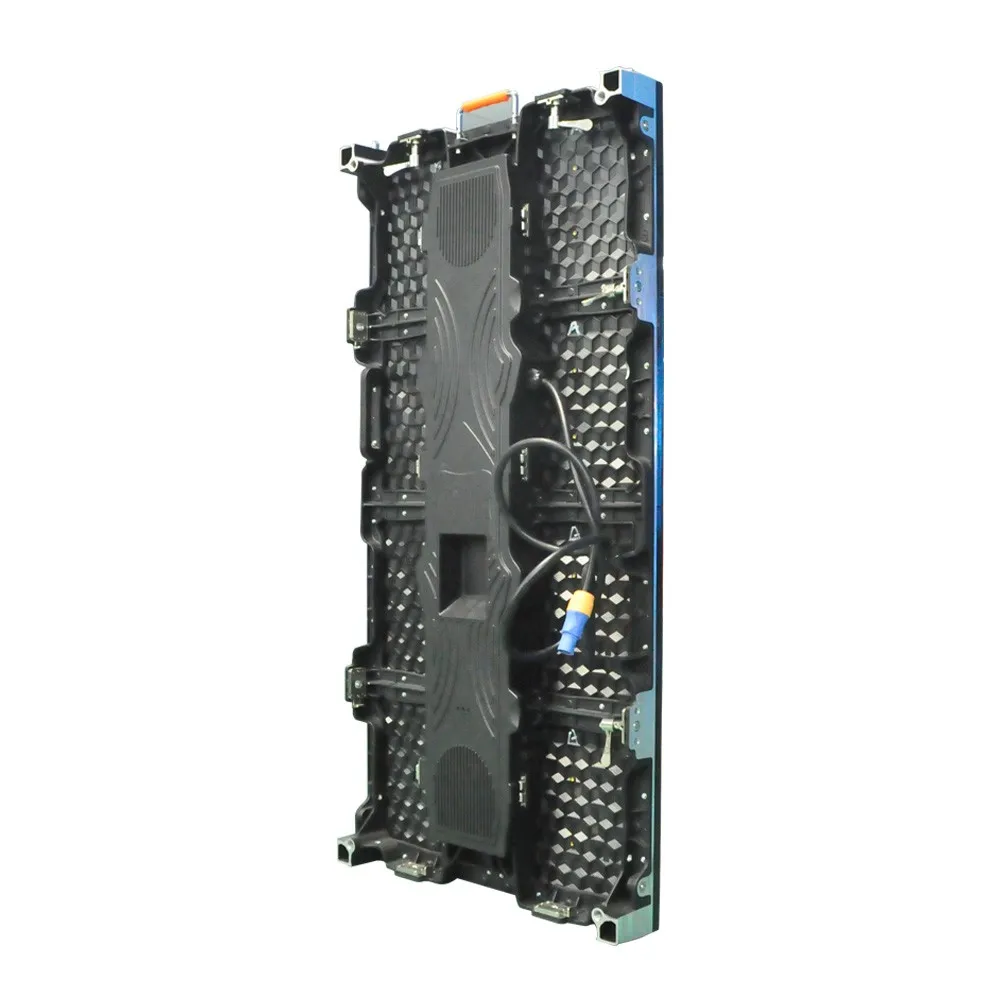

3. Die-casting Aluminum material cabinet with slim thickness of 75mm ensure light weight, only 13.5kgs per panel, can be picked up by one hand, easy to install and dismantle, better for rental use,


4. High brightness up to 6000nits, close view distance,good performance

5. Rental design cabinet with locks and aviation plugs, easy and quick to assemble without tools in short time, can be fixed install or hang on truss with flying bar

6. Dot to dot maintainance, quick maintain and save cost

7.No fans design, no noise caused, good environment protection

8. Widely used for stage, concert, show, banquet, wedding,stage background,public advertising etc.

9. We have other outlooking design cabinets for P3.91,P4.81,P5.95 and P6.25,with some different costs for customer's choosing,please contact us for details.

Related parameter for reference, please contact us for details, we produce products based on different requirements,and will cause different cost.
P6.25  full Color LED Screen/Curtain Specification
Pixel pitch6.25mm
Pixel Configuration1R1G1B
LED componentSMD3535
Size of module250mm x 250mm
Resolution of module40x40dots
Size of cabinet500mm x 1000mm x 75mm
Resolution of cabinet80x160dots
Material of CabinetDie-casting Aluminum
Weight of Cabinet13.5KGS
Brightness>6000cd/sq.m
Density25600dots/sq.m
Best viewing angle140° /140°
Pixel Configuration1R1G1B
Best viewing distance6-100M
Maximum power consumption1000W/sq.m
Average power consumption550W/sq.m
Driving method1/10 scan
Control methodSynchronization
Gray scale65536
Colors256*256*256
Color temperature3200-9300k
Uniformity97%
Working voltageAC220V/110V±10%
Working temperature-20ºC~+50ºC±10%
Working humidity10% ~ 90%
MTBF10,000 hours
Frame frequence50/60Hz
Refresh frequence>1920Hz
IP gradeIP65
Life Span100,000 hours
Data transafer methodRJ45
Pratical standardCCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
